600mm/800mm Glass Reinforced Plastics Red White/ RED/ Orange/ White Aviation Warning Spheres use for high-rise transmission lines

-

Glass Reinforced Plastics Red White/ RED/ Orange/ White Aviation Warning Spheres use for high-rise transmission lines

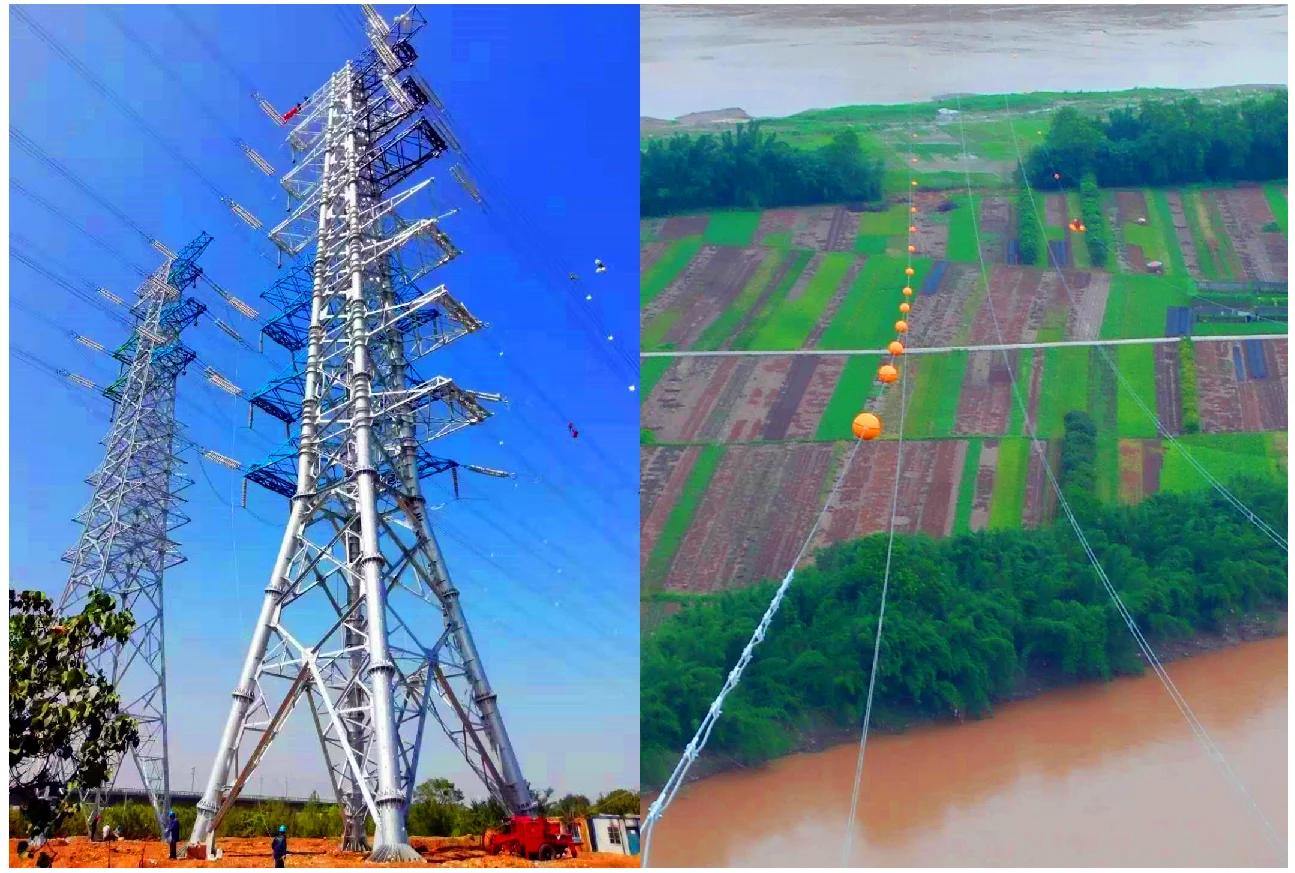

Especially for HV (500KV) transmission cables, river-crossing transmission lines to provide the warning marks
Designed to use for high-rise transmission lines, especially for EHV (500,000KV) transmission cables, river-crossing transmission lines to provide the warning marks.

Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney,
ports, wind power plants, bridge and city high-rise buildings where require aviation warning. Usually used above 45m and less than 150m buildings, could use alone, also could use with Medium OBL type B and Low intensity OBL type B together.

For more details , Please feel free to Contact : emma@chendongtech.com
what'sapp :0086-13342512879 ; Skype: chendongtech1

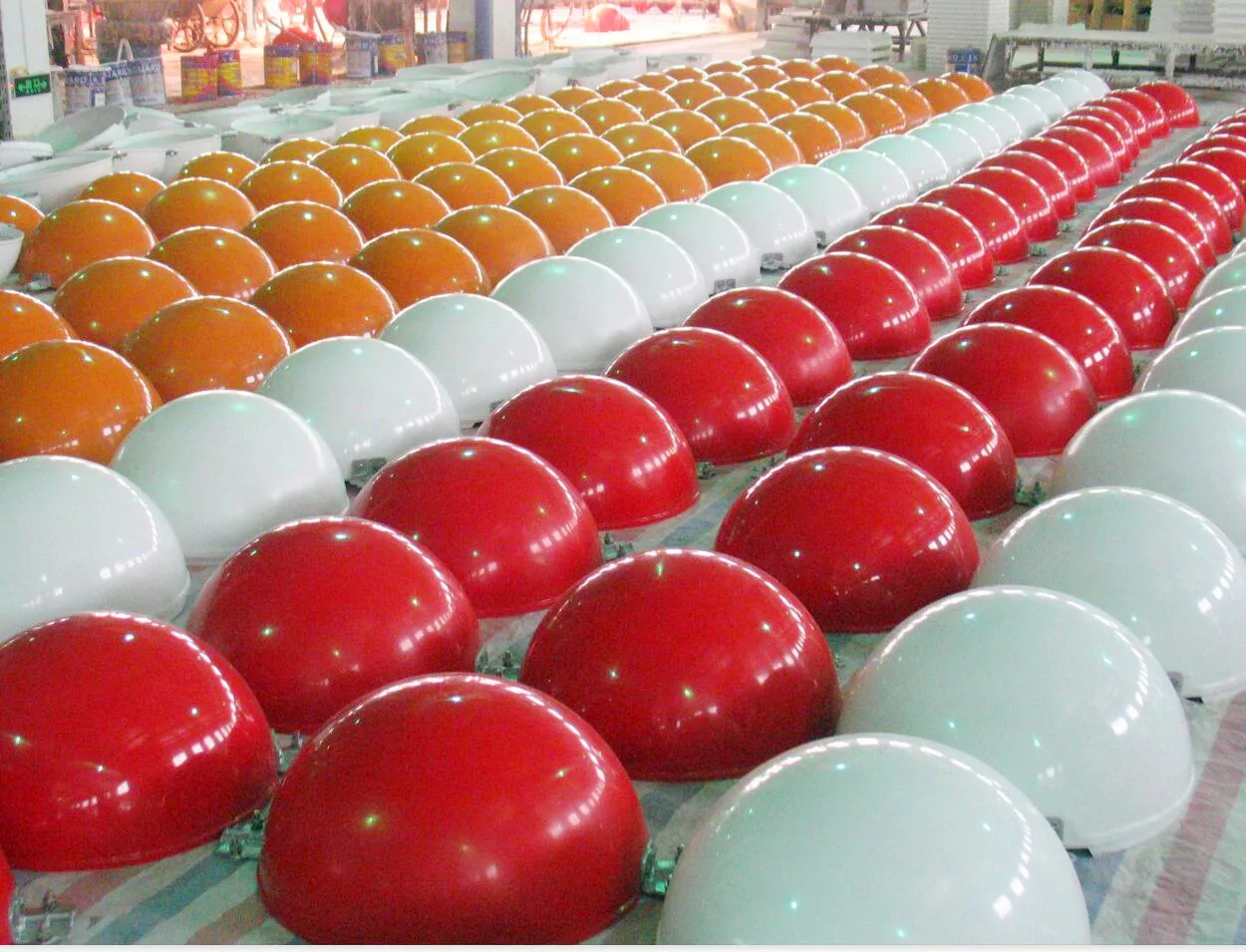

Product Presentation
Key Feature

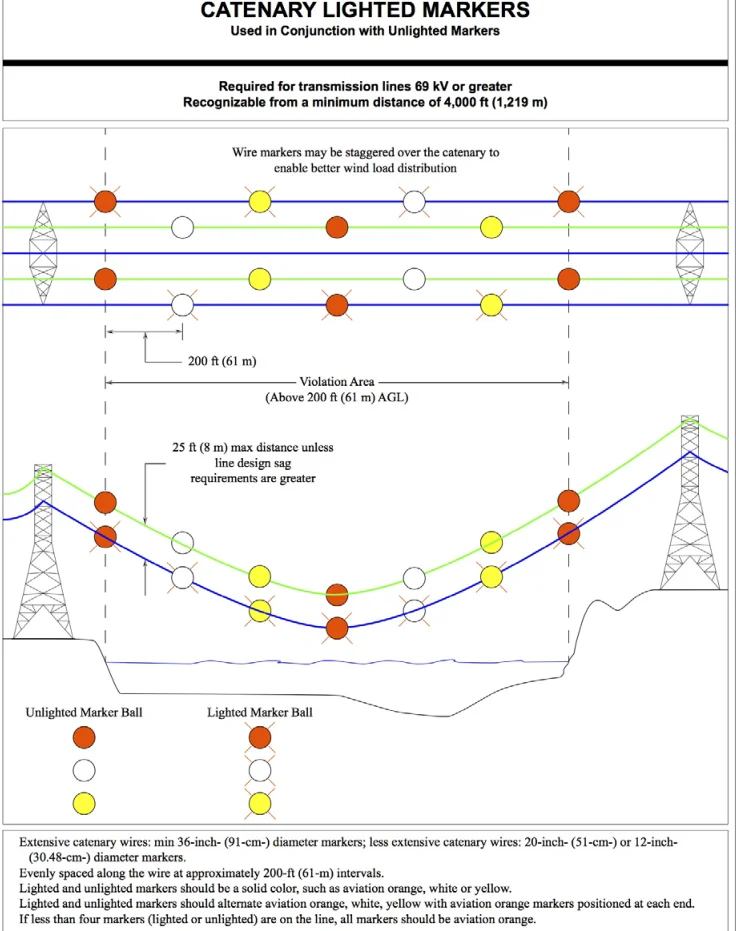

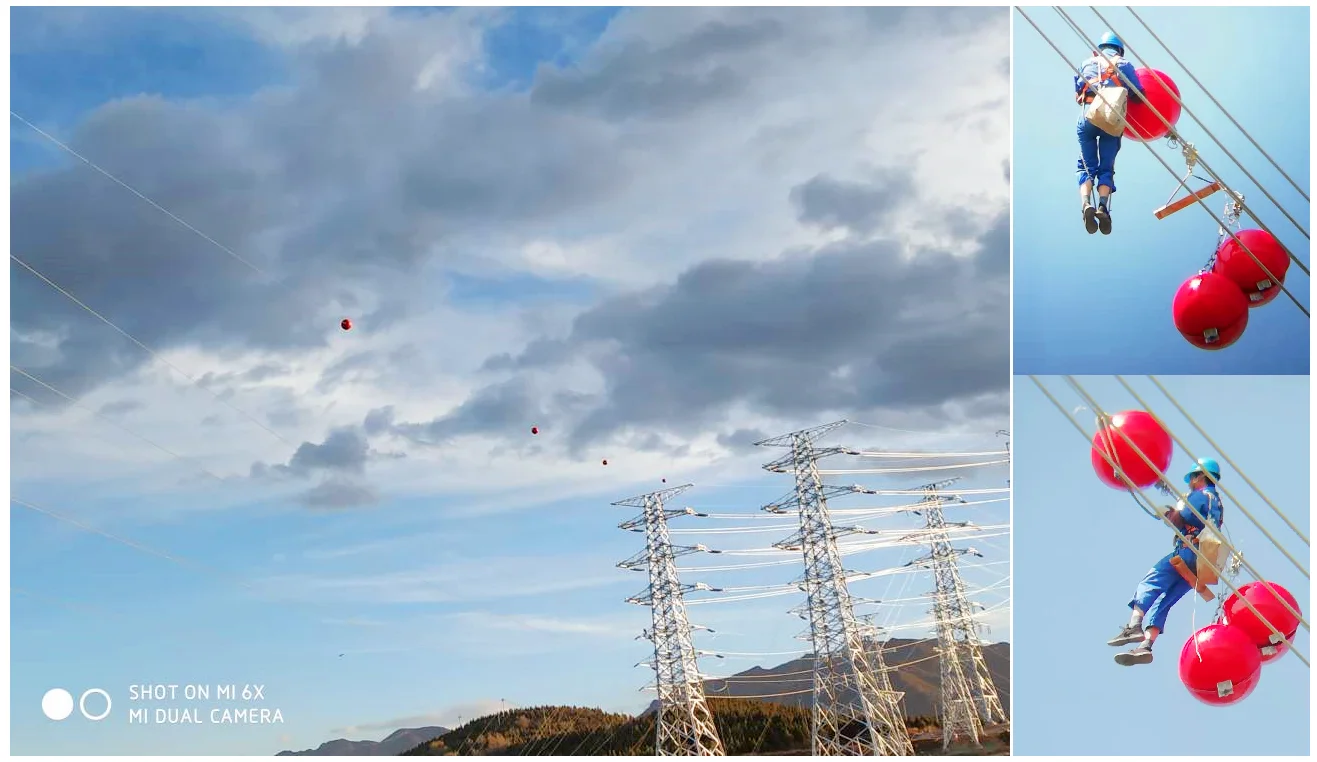

1. Aviation obstruction ball(Aviation warning ball) installed in the wire rope with thunder protected ground wire of the overhead
tower, each obstacle ball's distance can't exceed 30 meters, and equal Interval setting.
2. Aviation obstruction ball(Aviation warning ball) have red(orange) or white, should be interphase setting.
3. Involved multiterm lines, cables situation, the height of the balls should not be lower than the height of the highest marked overhead line.
Item
Parameter
Model
CM-012ZAQ
Operating Voltage
AC90-260V(other available)
Reflect factor
0.3-0.7
Material
glass fiber reinforced plastics
Emitting color
Red/White
Beam angle
360° horizontal beam angle
‎≥10° vertical beam spread
Overall size(mm)
600mm*741.5mm*600mm
Installation size(mm)
suitable cable size is 35-150mm
Ingress protection
IP65
Operating temperature
-55℃~55℃
Net weight
8KG
Wind load
80m/sec.
Certificate

Comments
