Power transmission Line Solar Powered Aircraft Warning Lights with ICAO Certification
Power Line Solar Powered Aircraft Warning Lights /High-rise Structures Solar Powered Aviation Obstruction Lights
This flashing red LED beacon obstruction light is the perfect solution for wind turbines, towers (cell/broadcast/other),buildings, and similar obstructions. Meets FAA and ICAO standards. Available with IR option for night vision. Easily retrofits to replace incandescent light.
Medium Intensity Obstruction Lights with Solar Panel have to be used where the obstacle is particularly large and the height of the surrounding soil is more than 45m and where the power supply does not arrive or where it is very weak.
OPTIONS
* Twin version: two galvanically separated circuits in the same fixture
* Infrared version: IR wavelength 850nM
* GPS sync

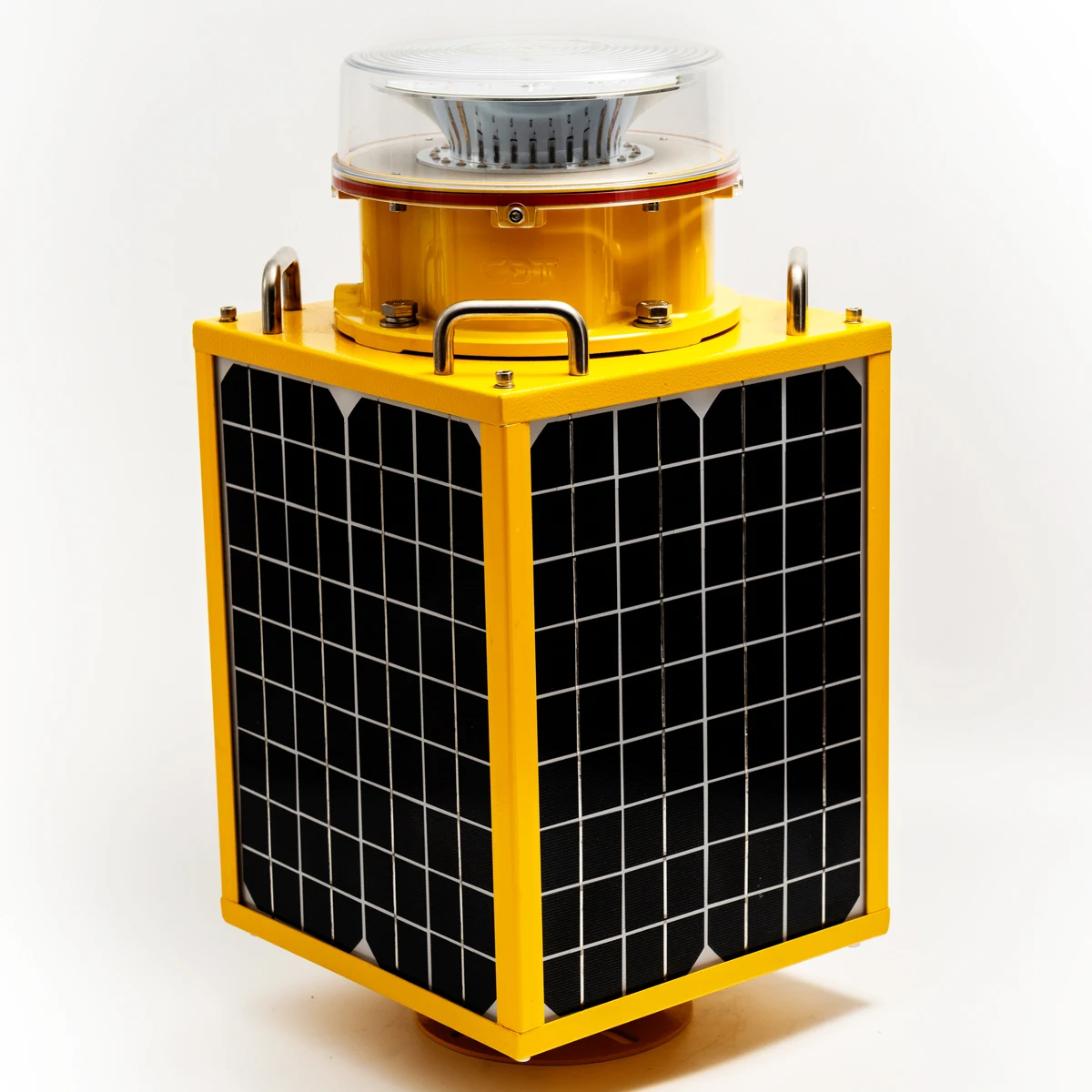

CK-15-T LED Red Solar Aviation Light
Operating Voltage DC12V
Power consumption ≤10W
Flashing frequency 20-60 times/min
Light intensity 2000cd
Life span ＞100,000 hours
Emitting color Red
Beam angle 360° horizontal,>3° vertical
Lightning protection level 10KA
Light controlled sensitivity 100Lux
Operating temperature -40℃～55℃
Net weight 17KG
Wind load 80m/sec.
Solar Panel
Size 320*230*3mm
Solar Power Voltage 18V
Solar Power Consumption 10.5W per pcs
Solar Power Voltage 18V
Solar Power Consumption 10.5W per pcs
Battery
Lead Acid Battery 24AH
Using Rainy / Cloudy Day 25 days
Specification

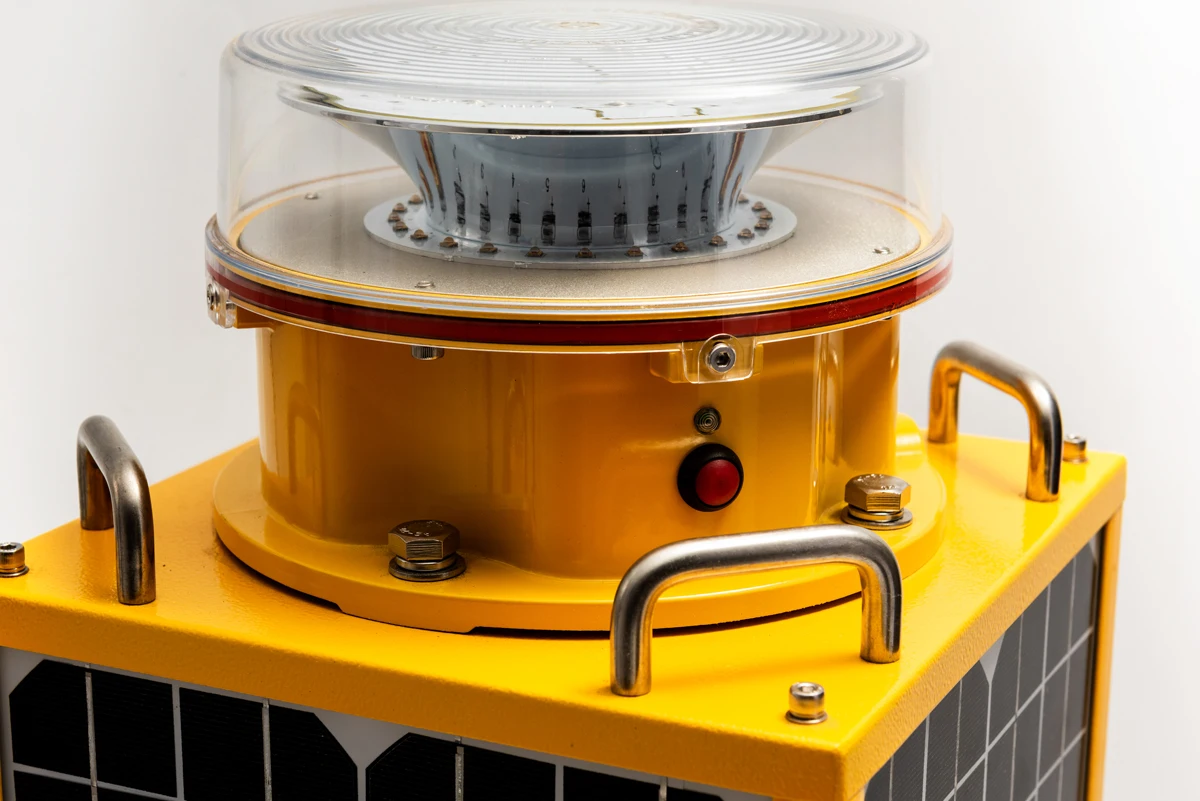

1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission
up to 90%, quite high impact resistance and fit the bad environment very well.
2. The body of the light adopts SUS304 stainless steel, House of the light is made of aluminum
alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.
3. Special battery for solar energy, free maintenance and high reliability, lifetime more than 3
years.
4. Based on the single chip computer micro power control, could control the charge and
discharge precisely.
5. Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%),
lifetime more than 20 years.
6. Using Fresnel lens optical design, range further.
7. Further use reflector optical design, visual distance, angle more accurately, thoroughly
eliminate the light pollution.
8. Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and
high efficiency.
9. Used the photosensitive probe fit for the natural ligh spectrum curce, automatic control
light intensity level.
10. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5
times, Imax 15KA so that the light is suitable to harsh environment.
11. Integral structure, protection lever of Ip65.
12. Synchronizing GPS function is available.

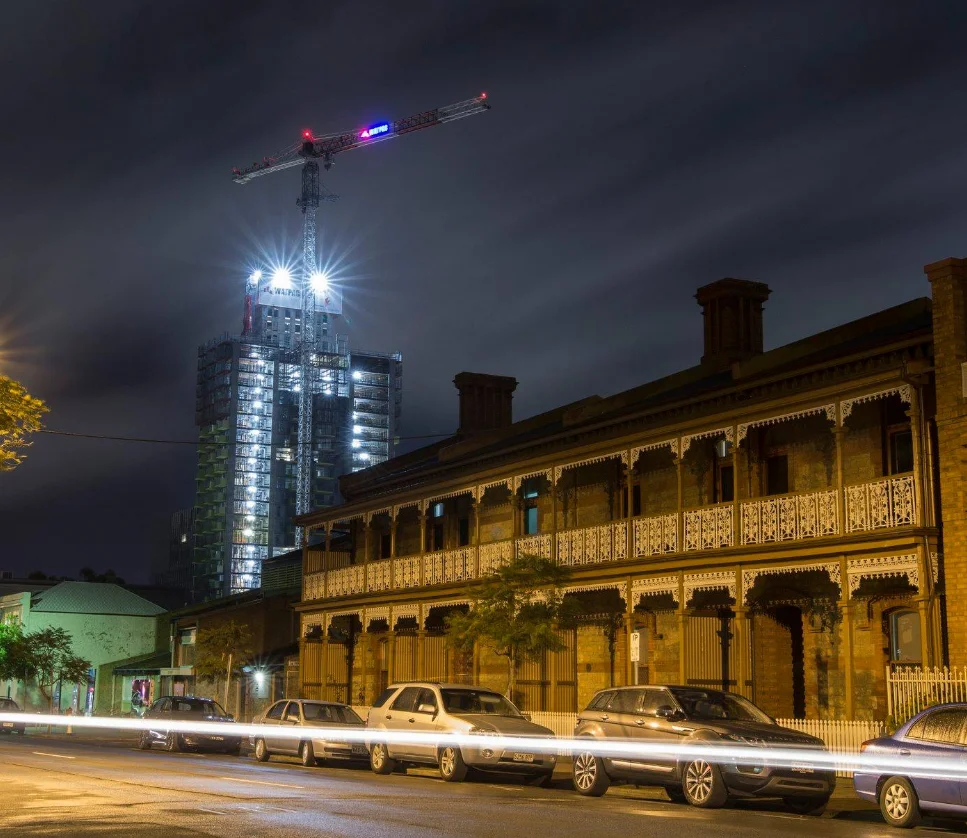

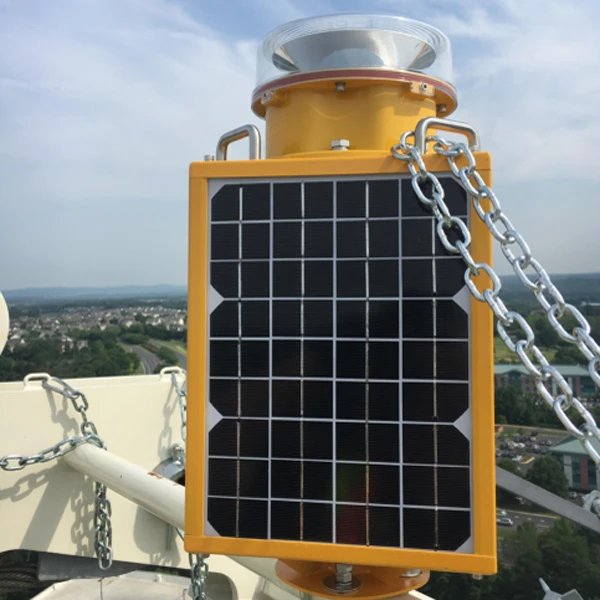

Installation Case :
