White & RED LED 2000-20000cd Flashing on day and night Aircraft Warning Lightfor Wind Turbe/ building /Power line transmission Tower

-

White & RED LED 2000-20000cd Flashing on day and night Aircraft Warning Lightfor Wind Turbe/ building /Power line transmission Tower

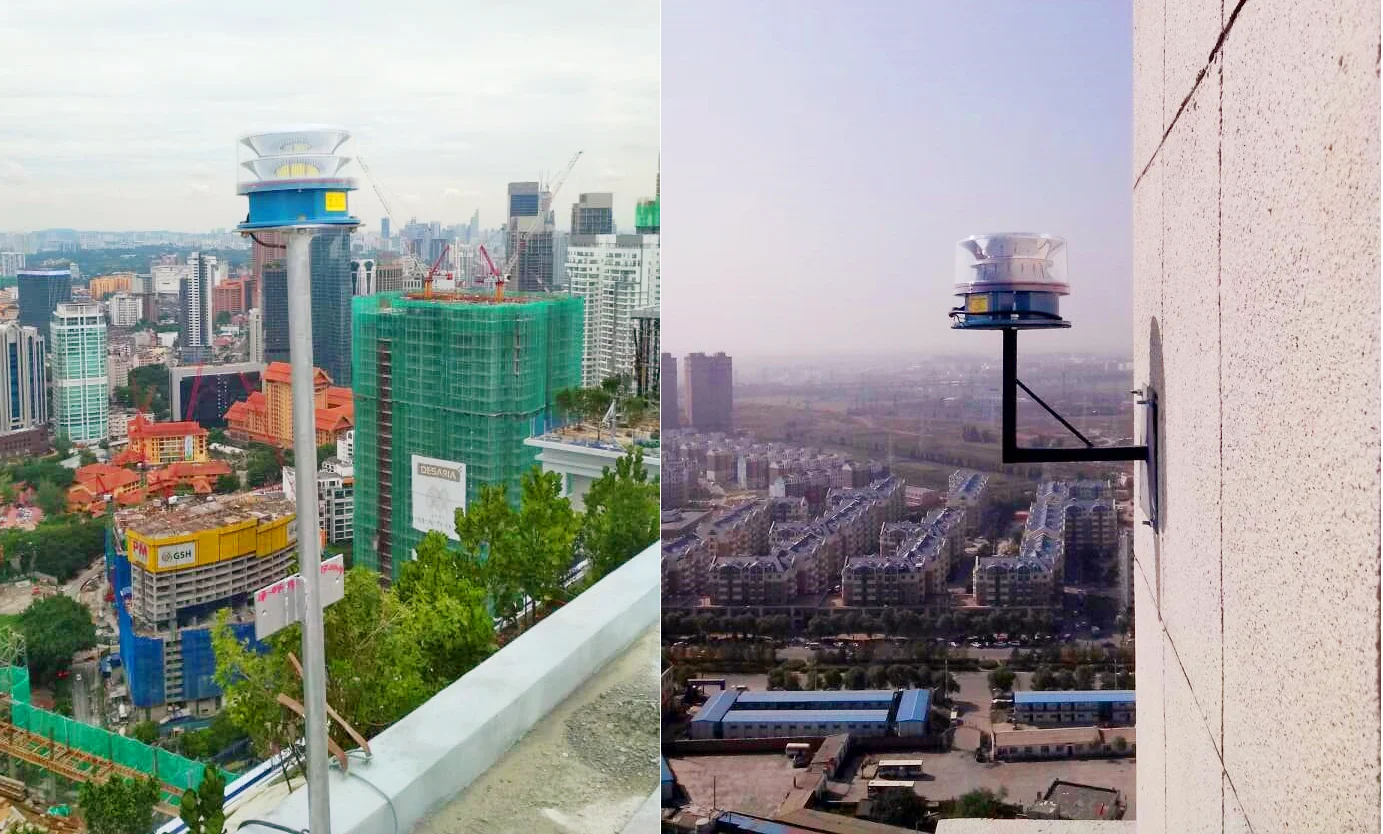

Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney,
ports, wind power plants, bridge and city high-rise buildings where require aviation warning. Usually used above 45m and less than 150m buildings, could use alone, also could use with Medium OBL type B and Low intensity OBL type B together.

For more details , Please feel free to Contact : emma@chendongtech.com
what'sapp :0086-13342512879 ; Skype: chendongtech1

Product Presentation
 Specification

1. Cover of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite
high impact resistance and fits the bad environment very well.
2. House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high
strength, resistance to corrosion.
3. Use the special optical reflector design, the visual range further, angle more accurate, no light
pollution.
4. Light source adopts import high quality LED, lifespan up to 100,000 hours, low power consumption,
energy efficiency and environmental protection.
5. Based on the single chip computer control, automatic identification sync signal, do not distinguish
the main light and auxiliary light, and also could be controlled by the controller.
6. Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the
damage by error installation caused.
7. Used the photosensitive probe fit for the natural light spectrum curve, automatic control light
intensity level.
8. The circuit of the light has surge protection, so that the light is suitable for a harsh environment.
9. Integral structure, protection level of Ip65.
10. GPS synchronizing function is available.
Item
Parameter
Model
CK-13-A/B
Operating Voltage
AC220V(other available)
Power consumption
≤30W
Flashing frequency
20~60times/min
Light Source
White/Red LED
Light Intensity
>20000cd(White)2000cd(Red)
Life span
>100,000 hours
Emitting color
White/Red
Beam angle
360° horizontal beam angle
‎≥3° vertical beam spread
Method of synchronization
Same power supply voltage signal mode

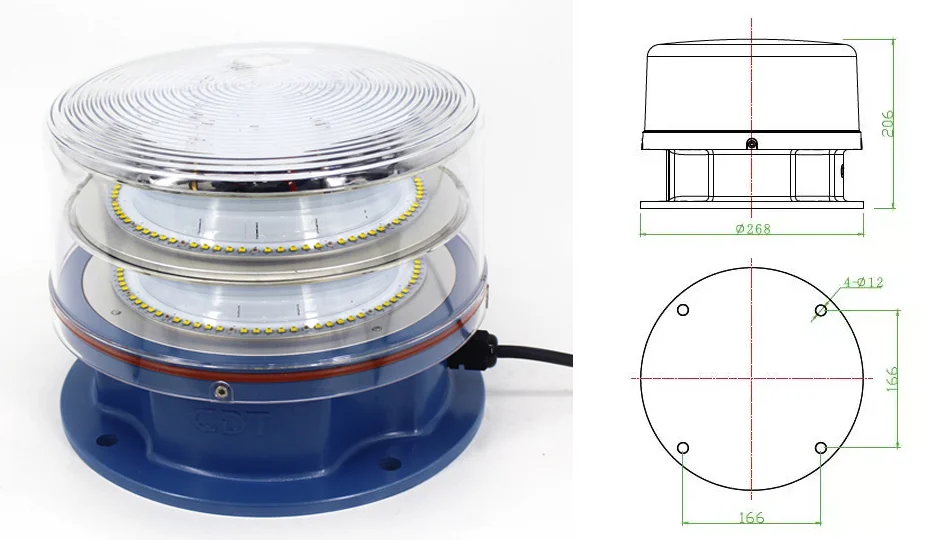

Overall size(mm)
268mm×206mm
Installation size(mm)
240mm×240mm×-4xM12
Ingress protection
IP65
Lightning protection level
10KA
Light Controlled Sensitivity
50Lux
Operating temperature
-40℃~55℃
Net weight
7KG
Wind load
80m/sec.

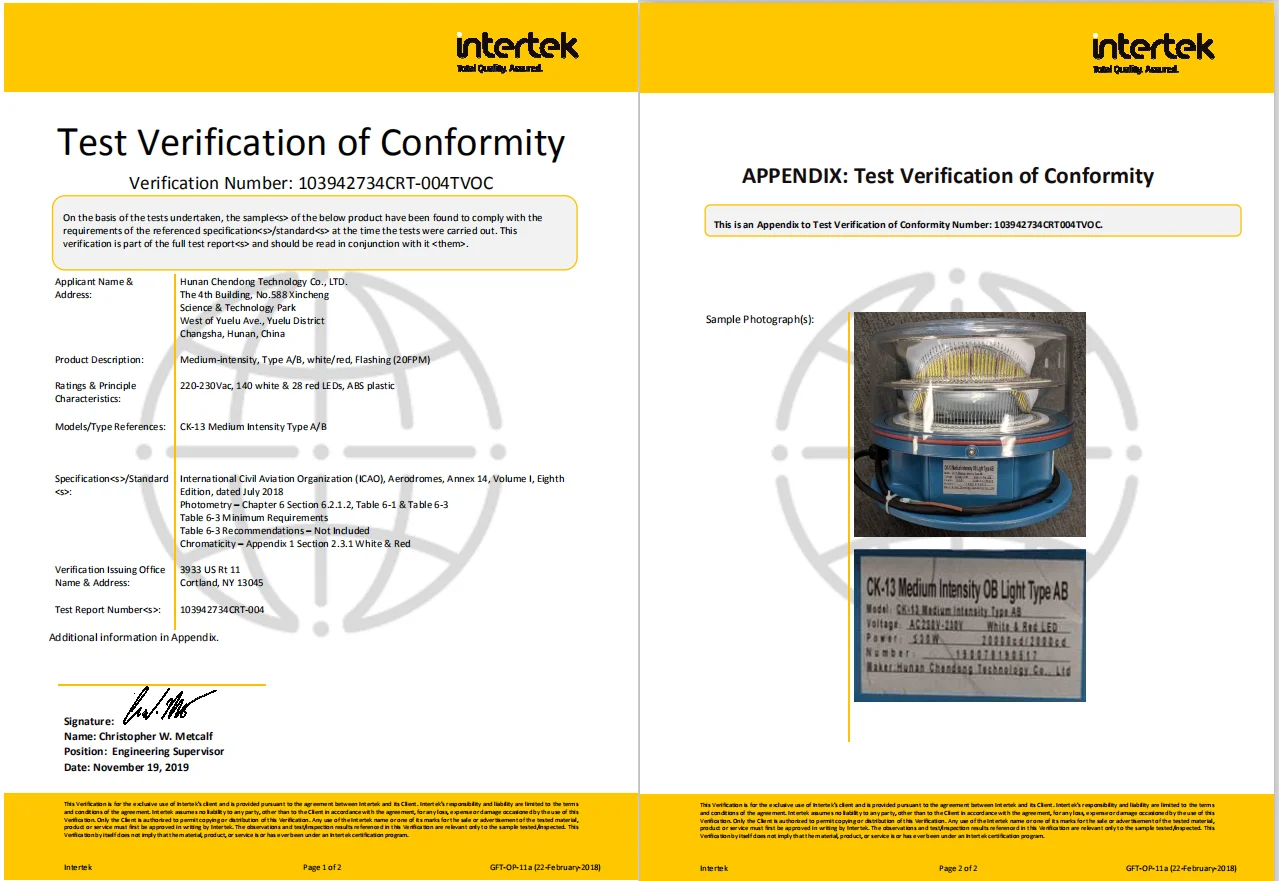

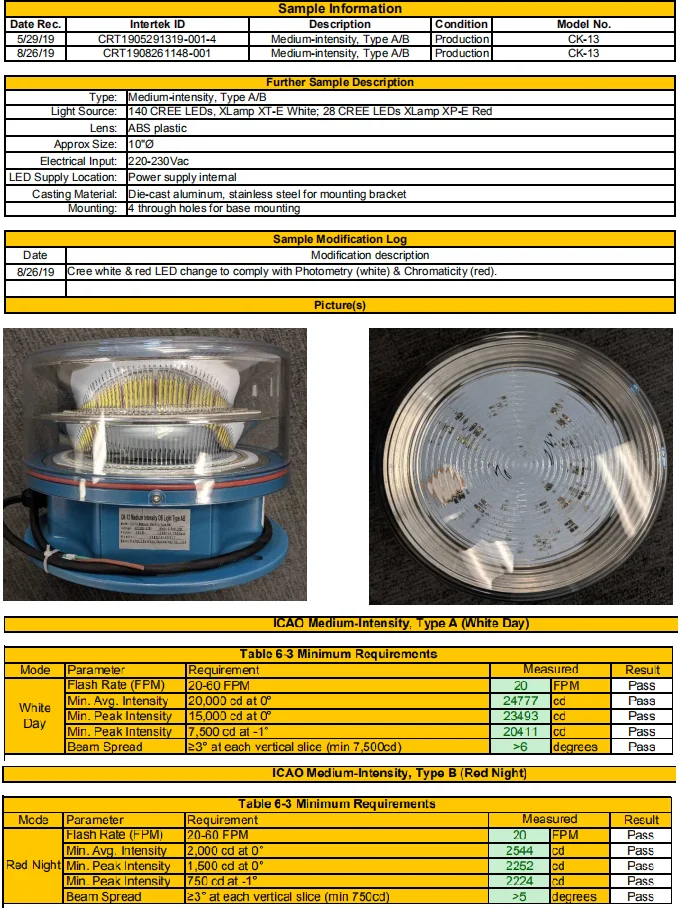

Certificate
ICAO certifcation
