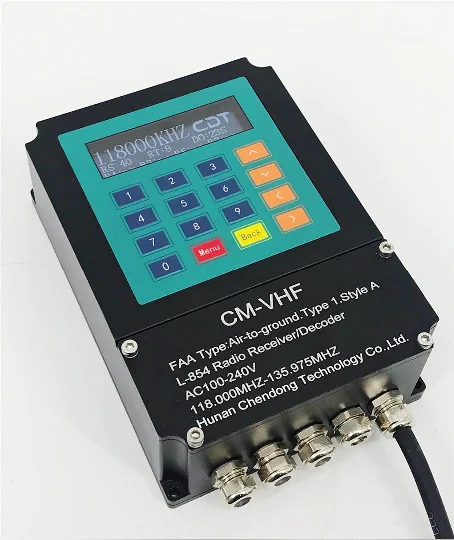

L-854 Radio Receiver VHF Heliport Remote Lighting Controller use for Pilot Controlled Lighting Solutions

-


L-854 Radio Receiver VHF Remote lighting controller use for pilot controlled lighting (PCL) solution using VHF radio.CDT helicopter equipment provides a solution to control your lighting and peripheral circuits using our remote lighting controller

This product belongs to FAA Type: L -854 Radio Receiver/Decoder, Air-to-ground, Type 1, Style A. Within the receiving range of the receiver, it receives and executes the ground control command from the aviation transmission frequency band.

1  Basic parameters
Power supply：AC100V-240V ,50HZ – 60HZ
Operating temperature：  -20° ~ 55°
Receiving frequency: 118.000MHz ~ 135.975MHz,
channel spacing 25KHz
Sensitivity: 5 microvolts, adjustable
Four outputs: RA, R3, R5, R7
Waterproof rating: IP54


For more detail :

emma@chendongtech.com
what'sapp/wechat/phone : 0086-13342512879
Installation Project
Products Description
Product Name
Pilot Controlled Helipad Light
Power supply
AC90V-264V, 50HZ – 60HZ
Working temperature
Outdoor -40° - 55°, indoor -20° - 55°
Receiving frequency
118000HZ – 135975HZ, channel spacing 25000Hz channel GMS frequency band: 850MHZ, 900MHZ, 1800, 1900MHz
Sensitivity
5 microvolts, adjustable.
Signal output frequency
> 50HZ
Four outputs
RA, R3, R5, R7
Waterproof rating
IP54
Size
186mm * 134mm * 60mm

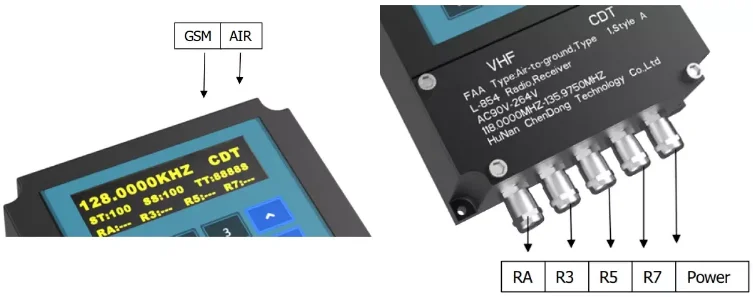

Product Structure
Company Profile

Hunan Chendong Technology Co.,LTD

Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
