L856 / L857 ICAO white led Tower alarm flashing warning high intensity aviation obstruction light
High Voltage Overhead Transmission Line Power Tower Solution Provider (ICAO Certificate High Intensity Aviation Obstruction Light/Aircraft warning light Solar System)
L-857 High Intensity Obstacle Lights Type B ICAO Certificate White Flashing LED High Intensity Obstruction Lights
High Intensity Obstacle Light Type B (90°), multi-LED type. The High Intensity Obstruction Light is compliant to ICAO (Type B) and
FAA (Type;L-857). High Intensity Obstruction Lights are used to indicate the presence of structures whose height above the level
of the surrounding ground exceeds 150m.
OPTIONS
* Dual A version: white light flashing on day and night
* Dual B version: white light flashing on day and night
* Infrared version
* Stainless Steel Beacon support bracket
For more details , Please feel free to Contact : emma@chendongtech.com
what'sapp :0086-13342512879 ; Skype: chendongtech1
what'sapp :0086-13342512879 ; Skype: chendongtech1

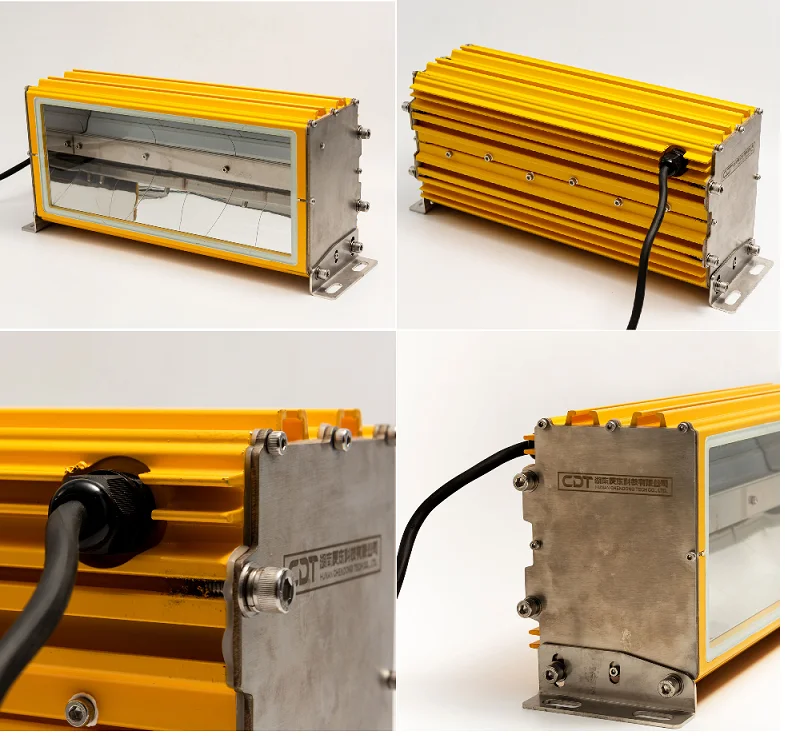

Product Presentation
Specification
1. The house of the light adopts Aluminium alloy, Lens of Tempered glass; the structure is high strength, resistance to
corrosion
2. Use the optical design of parabolic reflector, the visual range further and angle more accurate.
3. Light source adopts high quality LED which are light efficiency 100LM/W, low power consumption, long lifespan up to flash
100,000 Hrs
4. Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and
auxiliary light, and also could be controlled by controller
5. Same power supply voltage with synchronous signal, integrate in power supply cable, emliminate the damage by error
installation caused.
6. Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
7. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light
is suitable to harsh environment.
8. Integral structure, protection lever of IP65.
9. Ignitability rate UL-94V0, fit for all kinds of industrial situation .
10. GPS synchronizing function is available.
Certificate
ICAO certifcation
