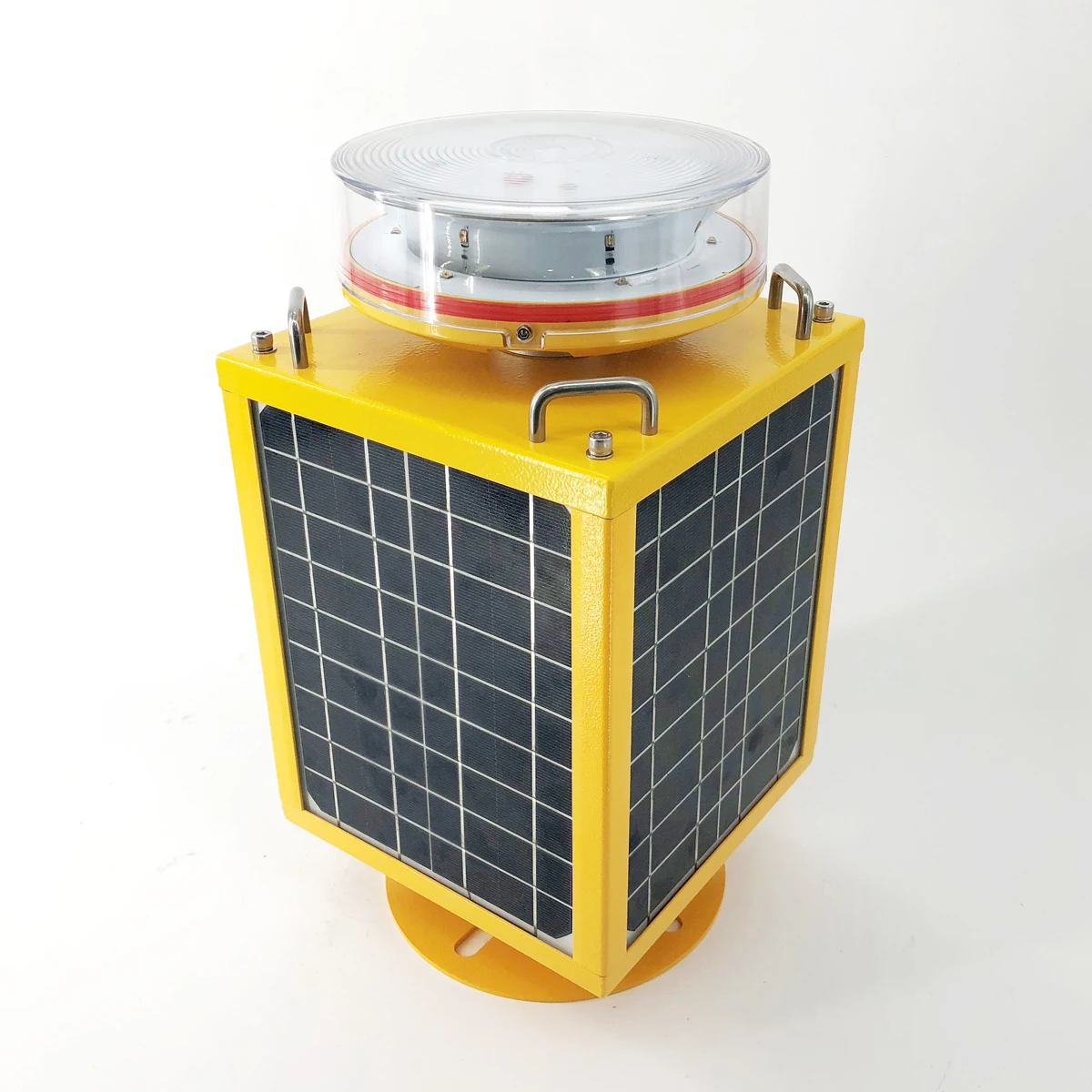

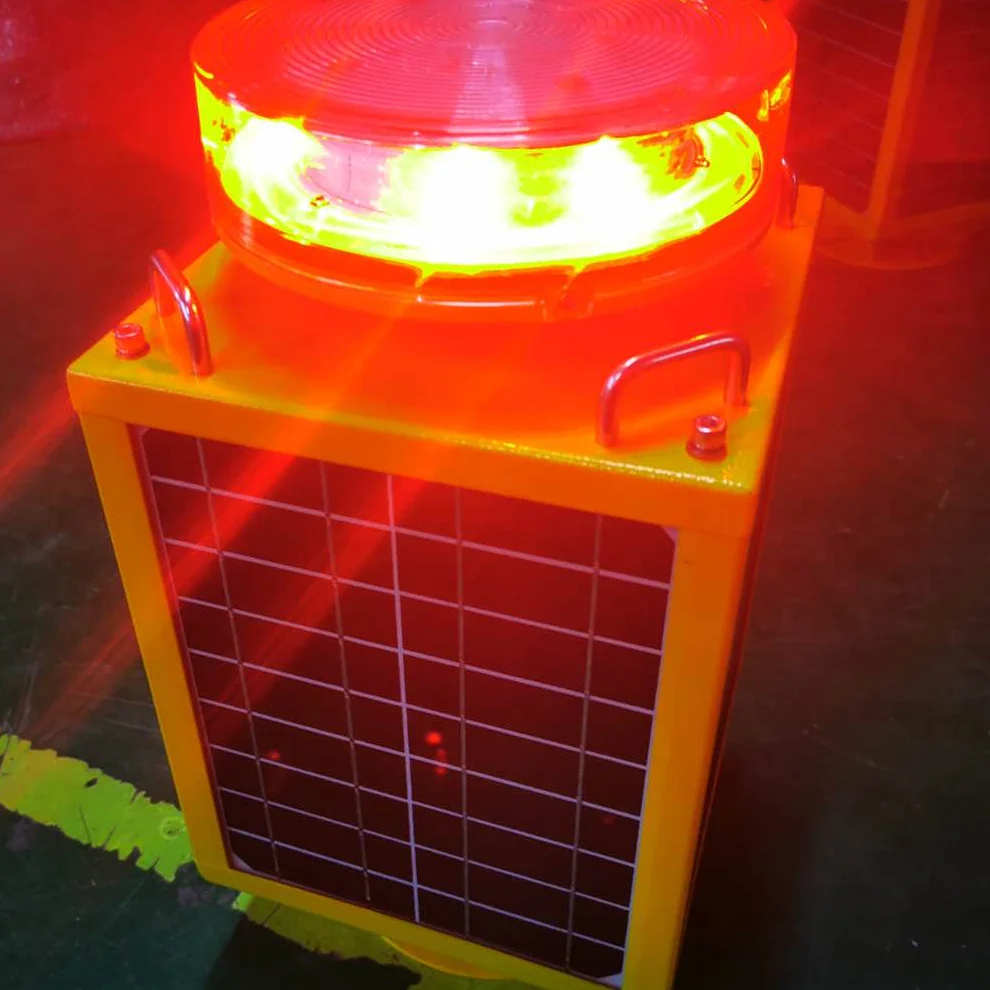

Airport Buildings DC6V Infrared portable 32cd fixed red led Solar Power low intensity aviation obstruction light
Airport Buildings DC6V Infrared portable 32cd fixed red led Solar Power low intensity aviation obstruction light Comply with ICAO /L810
Options:
* Dual aviation obstruction light (1 duty & 1 stand-by)
* Solar Powered system
* Low intensity aviation obstruction light type A , Type B . Type E Optional
* IR Wavelength - 850nM
As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Lights (LIOL) should be used to warn the presence of obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.
Low Intensity Obstruction Lights are the simplest devices according to ICAO standards and they have the following characteristics and uses:
* Type A (intensity >10cd, red steady burning) can be used alone;
* Type B (intensity >32cd, red steady burning), can be used either alone or in combination with medium intensity obstacle
lights Type B, Type AB or with high intensity obstacle lights Type AB;
* Type E (intensity >32cd, red flashing), can be used either alone or in combination with medium intensity obstacle lights,
Type B. Flashing rate will be set at the same rate of other flashing beacons installed on the structure.
* Dual aviation obstruction light (1 duty & 1 stand-by)
* Solar Powered system
* Low intensity aviation obstruction light type A , Type B . Type E Optional
* IR Wavelength - 850nM
As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Lights (LIOL) should be used to warn the presence of obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.
Low Intensity Obstruction Lights are the simplest devices according to ICAO standards and they have the following characteristics and uses:
* Type A (intensity >10cd, red steady burning) can be used alone;
* Type B (intensity >32cd, red steady burning), can be used either alone or in combination with medium intensity obstacle
lights Type B, Type AB or with high intensity obstacle lights Type AB;
* Type E (intensity >32cd, red flashing), can be used either alone or in combination with medium intensity obstacle lights,
Type B. Flashing rate will be set at the same rate of other flashing beacons installed on the structure.
For more details :
emma@chendongtech.com
wechat/what'sapp/phone: 0086 13342512879
Specification
Key Feature
1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact resistance and fit the bad environment very well.
2. The body of the light adopts SUS304 stainless steel, House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion. Special battery for solar energy, free maintenance and high reliability, lifetime more than 3 years.
3. Based on the single chip computer micro power control, could control the charge and discharge precisely.
4. Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%), lifetime more than 20 years.
Using Fresnel lens optical design, range further. Further use reflector optical design, visual distance, angle more accurately, thoroughly eliminate the light pollution.
5. Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and high efficiency.
6. Used the photosensitive probe fit for the natural ligh spectrum curce, automatic control light intensity level.
7. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment. Integral structure, protection lever of Ip65.
8. Synchronizing GPS function is available.
Option Feature
Infrared Lighting - NVG and NVIS compatibility using 850nm infrared (IR) LEDs.
Overvoltage Protection Adjustable Mounting Pedestal - For mounting in variable mounting positions.
1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact resistance and fit the bad environment very well.
2. The body of the light adopts SUS304 stainless steel, House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion. Special battery for solar energy, free maintenance and high reliability, lifetime more than 3 years.
3. Based on the single chip computer micro power control, could control the charge and discharge precisely.
4. Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%), lifetime more than 20 years.
Using Fresnel lens optical design, range further. Further use reflector optical design, visual distance, angle more accurately, thoroughly eliminate the light pollution.
5. Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and high efficiency.
6. Used the photosensitive probe fit for the natural ligh spectrum curce, automatic control light intensity level.
7. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment. Integral structure, protection lever of Ip65.
8. Synchronizing GPS function is available.
Option Feature
Infrared Lighting - NVG and NVIS compatibility using 850nm infrared (IR) LEDs.
Overvoltage Protection Adjustable Mounting Pedestal - For mounting in variable mounting positions.

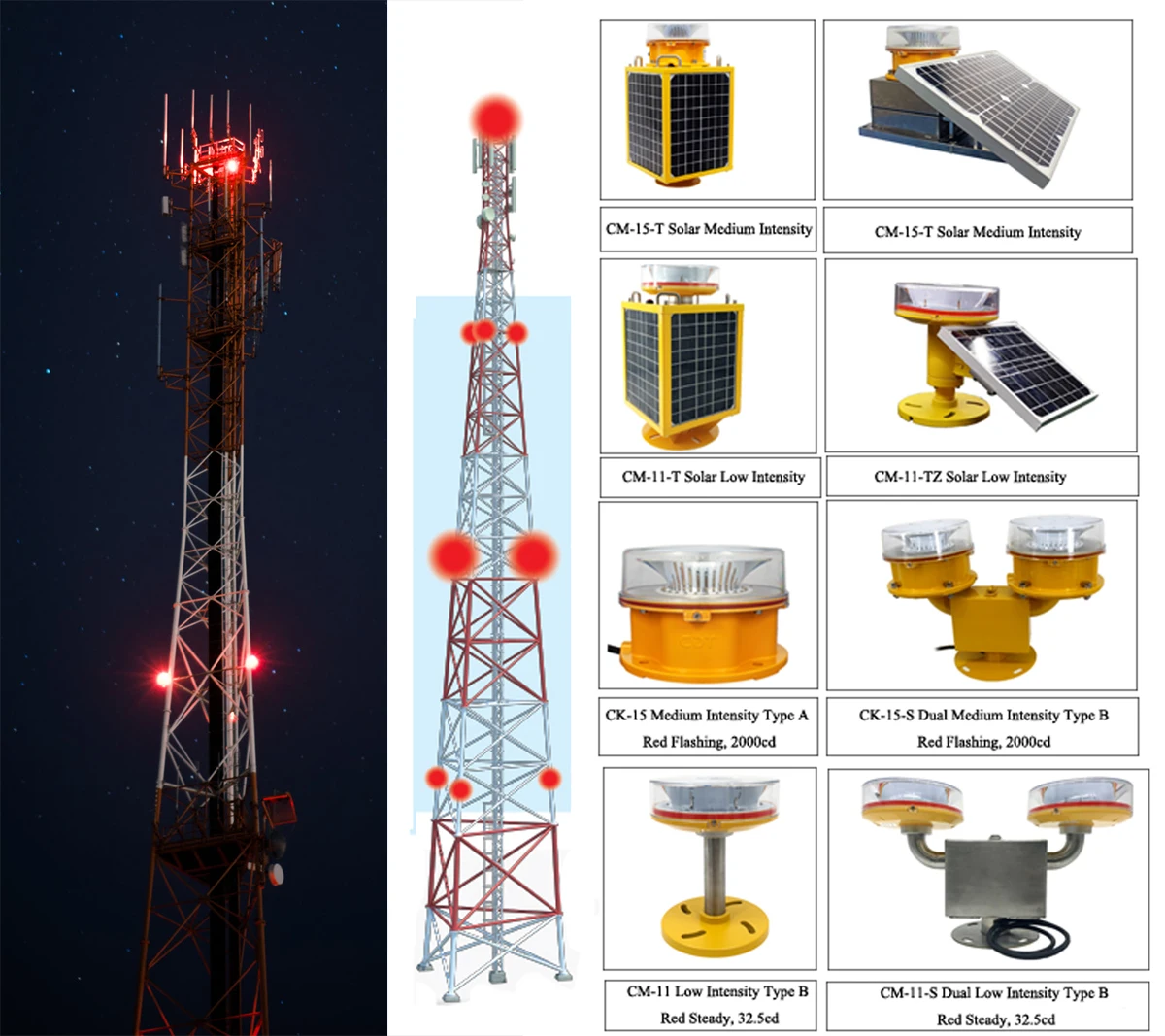

Installation Project
.jpg)
