Aircraft Warning Light , 2000cd steady burning medium intensity type C compliant ICAO L885

-


Aircraft Warning Light , 2000cd steady burning medium intensity type C compliant ICAO L885


Parameter
Item
Parameter
Standard
FAA，ICAO Standard
Operating voltage
AC90V-AC240V
Power consumption
30W
Flashing frequency
Fixed
Light source
Red LED
Light Intensity
2000cd
Lifespan
＞100,000hours
Overall size(mm)
268mm×206mm
Installation size(mm)
240mm×240 mm -4×Ф11
Ingress protection
IP65
Lightning protection level
15KA
Light controlled sensitivity
50Lux
Operating temperature
-40℃～55℃


Key Feature

  • Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 95%, quite high impact resistance and fits the bad environment very well.
  • House of the light is made of urther; aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion;Using parabolic reflector optical design, range further
  • Light source adopts high quality LED, low power consumption,long lifespan, high brightness. Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and auxiliary light, and also could be controlled by the controller
  • Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the damage by error installation caused;
  • Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level
  • The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5times, Imax15KA so that the light is suitable for a harsh environment;
  • Integral structure, protection level of Ip65;
  • Ignitability rate UL-94V0, fit for all kinds of industrial situation

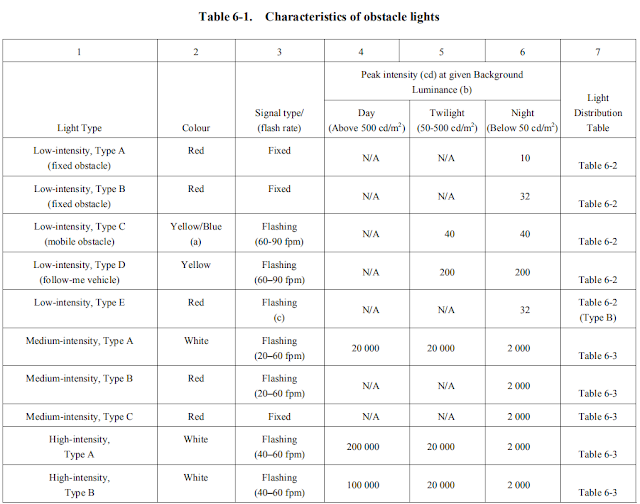

ICAO Light Intensity Standards



Aircraft warning Light Aging & Testing
