Aviation obstruction marking sphere | Aircraft Spherical Warning marker ball

-

Electricity transmission line marker - Aviation obstruction marking sphere |  Aircraft Spherical Warning marker ball .


  • Reflective strip can make pilots see clearly in the night
  • Drain holes can prevent rain accumulating in the sphere
  • Visible distance:1250 m from the air and 350 m from the ground.
  • Voltage range: 35 KV - 1000 KV.
  • Color: single color (aviation red, aviation orange, aviation white), two colors (white/orange, white/red).
  • 600 mm, 800 mm, others can be customized


Application of obstruction marking sphere
  • Used in overhead conductors, supporting towers, high-rise transmission lines, EHV (500,00 KV) transmission cables, communication wires to warn low flying airplanes and helicopters.
  • Warning spheres are applied near airports and on elevated spans crossing river, lakes, fjords, valleys, roads, railways, construction sites and pipelines.
  • Warning spheres are also applied near military bases, police stations, hospitals, helicopter routes and other low flying areas.


More detail

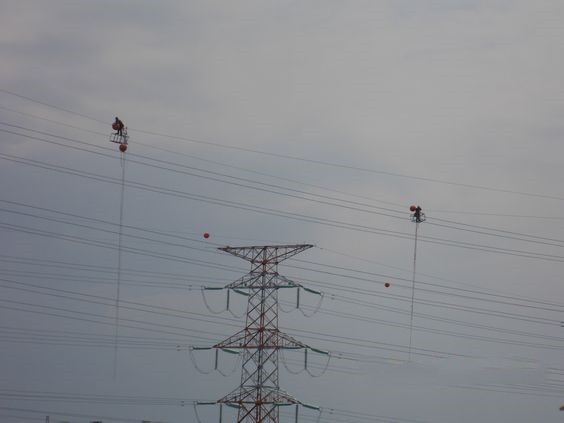

Transmission Line Install Project:
