Helipad FATO lighting, white omnidirectional Led perimeter lights ICAO certificated

-



Helipad FATO lighting, white omnidirectional Led perimeter lights ICAO certificated
  • A signalization FATO system (Final Approach and Take-Off area) is required for heliport with a big operation surface, for take off and helicoper Landing. The FATO lights, when they are present, is required if night operation are present. The system is composed by lights with white omnidirectional emission, located on the perimeter of heliport.
  • In some case, where the Landing are is reduced, the FATO area and the TLOF one are the same and the green lights are used.

  • The FATO area can be circular (in this case are required a minimum of 10 lights installed with a max distance of 5 meters one from the other) or square (in this case are required a minimum of 4 lights for each side, including the ones in the corners, and installed at a max distance of 50meters one from the others).

Technical Features
  • Based on LED technology
  • White steady burning light
  • Intensity: 100cd
  • Long life time >10 years life expectancy
  • Low consumption
  • Lightweight and compact
  • IP68 protection degree
  • tested at wind over 240Kh/h (150MPH)
  • Easy to install
  • No RF-radiations

Item Name
aiming point lights for heliport
Model
CM-HT12/D
Operating Voltage
AC220V/6.6A
Power consumption
≤15W
Light intensity
100cd
Life span
＞100,000 hours
Emitting color
White
Overall size
∅220mm×160mm
Ingress protection
IP68
Operating temperature
-40℃～55℃
Net weight
6.5KG
Wind load
80m/sec.

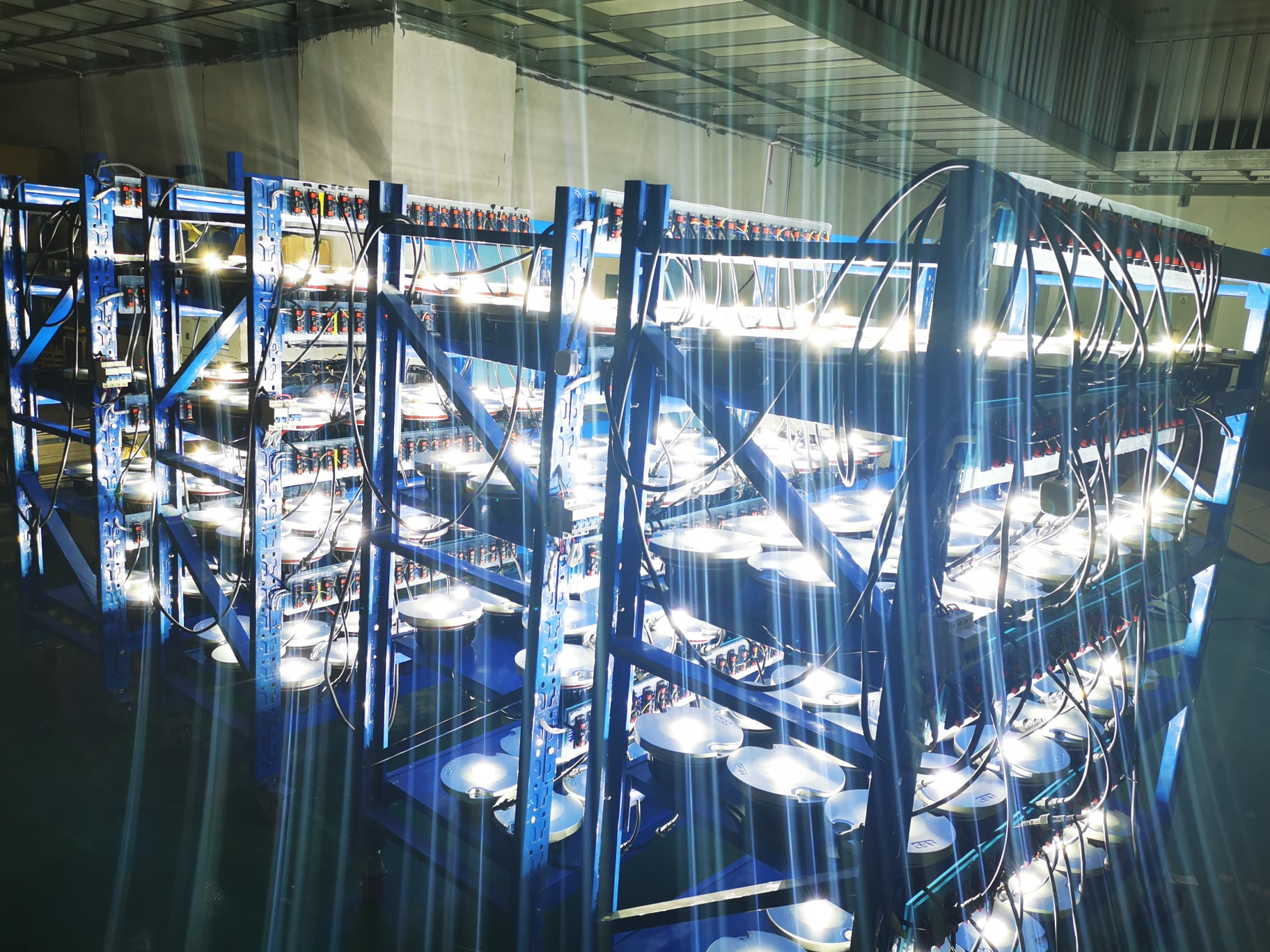

Heliport FATO lighting Testing & Aging

Solution support :
emma@chendongtech.com
what'sapp: +86 13342512879
