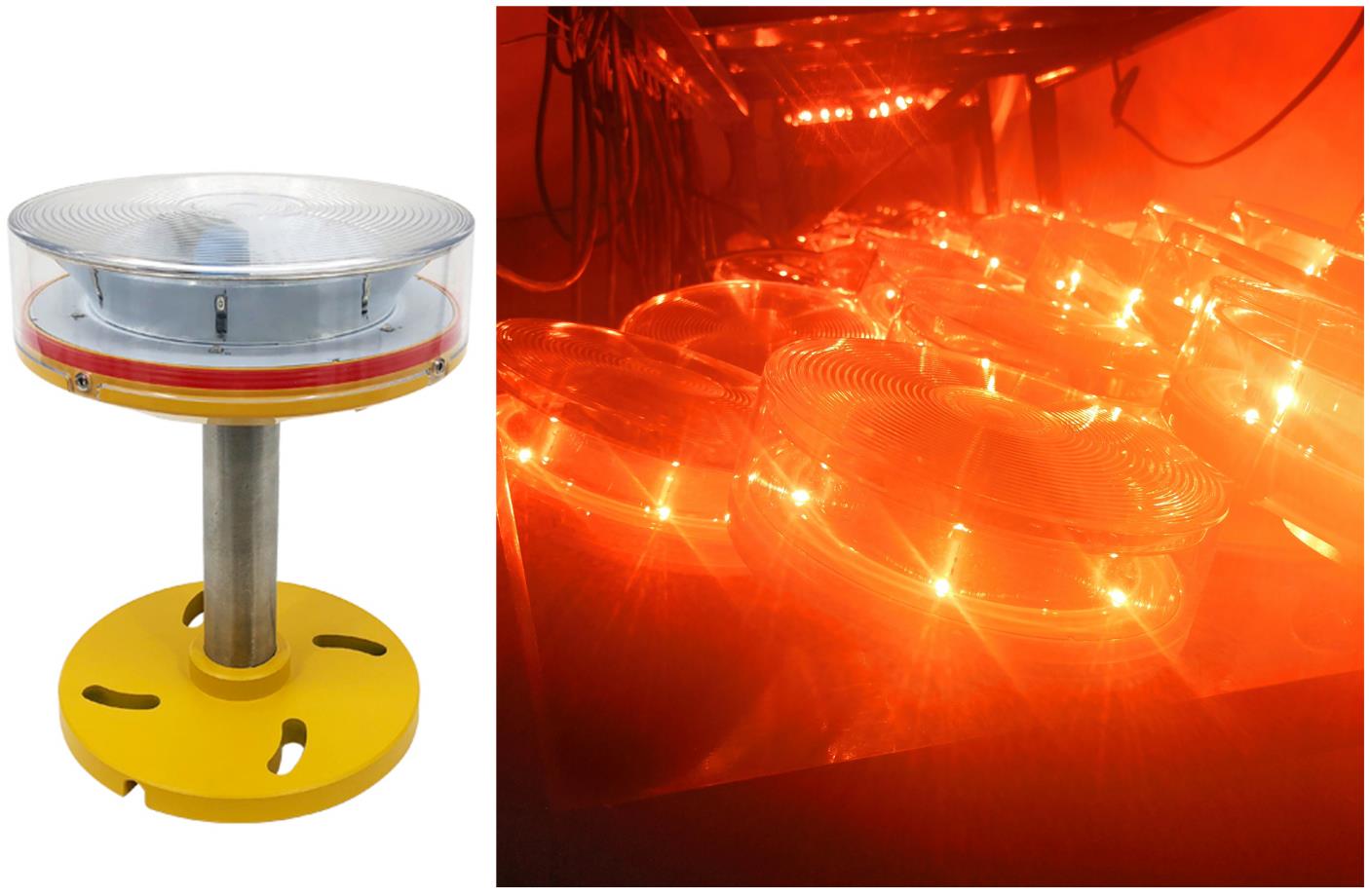

100cd LED Aircraft Warning Light

-


100cd LED Aircraft Warning Light


Item Name
Aviation Obstruction Beacon
Model
CM-11
Operating Voltage
AC110-240V/DC12-48V
Power consumption
≤5W
Flashing frequency
Steady-Burning
Light intensity
10cd/32.5cd/100cd
Life span
＞100,000 hours
Emitting color
RED
Beam angle
360° horizontal,more than 10° vertical beam spread
Method of synchronization
Same power supply voltage signal mode
Overall size
∅175mm×220mm
Installation size
Φ130-4*M10
Ingress protection
IP65
Environment humidity
0%-95%
Operating temperature
-40℃～55℃
Net weight
1.5KG
Wind load
80m/sec.


Specification

  • The lampshade is made of UV (UV) resistant PC (polycarbonate) material with a transparency of over 95%. It has flame retardant, non-toxic, excellent electrical insulation, dimensional stability, corrosion resistance, high temperature resistance and cold resistance.
  • The lamp base is characterized by high strength, corrosion resistance and aging resistance.
  • Reflector based on the principle of reflection, the light utilization rate is over 95%, and the light exit angle can be more accurate, the visible distance is farther, and the light pollution is completely eliminated.
  • The light source uses a high-efficiency, low-power, long-life, high-brightness LED cold light source.
  • The power supply is designed for equal supply voltage synchronization signal levels and is integrated into the power cable to eliminate damage caused by incorrect installation.
  • Lightning protection: The internal self-contained anti-surge device makes the circuit work more reliable.
  • The complete set of lamps and lanterns adopts full packaging technology, which is resistant to impact, vibration and corrosion, and can be used in harsh environments for a long time. The structure is light and firm, and the installation is simple.


There are a wide range of variety of ACWL Aircraft Warning lighting / AOL
Aviation Obstruciton Light solutions can be offered for your requirements and budget.


Find me on WhatsApp: +86 13342512879  or emma@chendongtech.com ,
and let's discuss more.
