Medium Intensity Type A Obstruction Lighting Solar Kits system used for 110KV Overhead line Transmission Tower






Project name: 110KV Overhead line Transmission Tower

Item number: CM-15

Application: Solar kits aircraft warning lights system on transmission towers

Products: CDT CM-15 Medium-Intensity Type A Obstacle Light

Location: Jinan City, Shangdong Province, China



Background

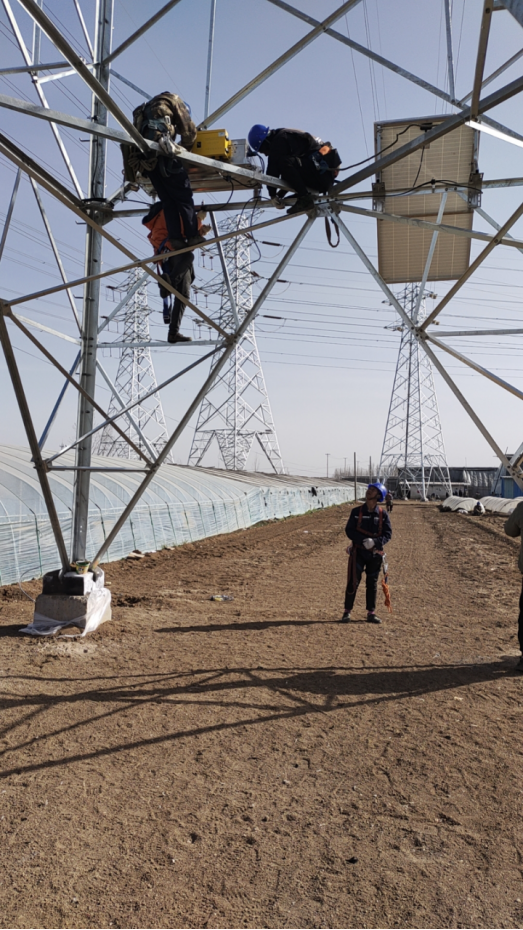

110KV Overhead line Transmission Tower have installed 96set aircraft warning lighting system solar kits , DC96V Power supply , Medium-intensity type A 2000-20000cd white flashing on day and night.



Solution

This solar kit system that can power aircraft warning lights for transmission line projects.

Solar kits are for powering medium-intensity aircraft warning lights on transmission towers, they are eco-friendly, cost-effective, and require minimal maintenance. the system designed to be used in remote locations, where access to the electrical grid may not be possible.



The solar kit obstruction lighting system consists of the following components:

1. Solar Panels

Solar panels responsible for converting sunlight into electricity that can be used to power the warning lights.

2. Batteries

Batteries are used to store the electricity generated by the solar panels. They ensure that the system has a continuous power supply, even when there is no sunlight. Deep-cycle batteries are recommended for this application since they are designed to discharge and recharge frequently.

3. Charge Controller

The charge controller regulates the flow of electricity between the solar panels and batteries. It prevents overcharging and undercharging, which can damage the batteries and reduce their lifespan.

4. Aircraft Warning Lights

These lights are designed to be visible from long distances and are critical in ensuring the safety of aircraft flying near transmission towers.

6. Mounting bracket and Cables

The mounting bracket and cables are used to install and connect the various components of the solar kit system. It's important to ensure that all components are securely mounted and connected to prevent damage from wind and weather.



The Obstruction lights are compliant with ICAO Annex 14, FAA L864, FAA L865, FAA L856, and CAAC Standard.

















CDT ‘s ICAO Aviation Obstruction Light Features

l Based on LED technology

l CM-15: White Light - Flashing; 2.0000 cd day-mode; 2.000 cd night-mode

l Long life time >10 years life expectancy

l Low consumption

l Lightweight and compact

l Degree of Protection: IP66

l No RF-radiations

l Easy to install

l GPS & GSM versions available

l Integrated light sensor for day/night operation

l Integrated flash control and diagnostics including remote monitoring contacts

l Wind resistance tested at 240km/h

l CAAC ICAO certified





RESULT

By installing CDT obstacle lights are critical in helping to prevent collisions between aircraft and transmission towers, especially in low-visibility conditions.
